Introducing our professional-grade PVC Plastic Wire, specifically designed for the spiral coil binding industry. This wire is the core material that is fed into a spiral coil binding machine to produce the durable plastic coils that hold your documents together. We understand that consistency in diameter is critical to prevent machine jams and ensure a perfect finish, which is why we maintain an exceptionally tight tolerance of ±0.03 mm
 |
|
|
|
オンラインです
認証
Eco-friendly Plastic Spiral PVC Plastic Coil Binding Raw Materials Recycled PVC Filament 1.6mm 1.8mm 2.0mm
|
商品の詳細:
お支払配送条件:
|
詳細製品概要
| 項目名: | プラスチックワイヤーPVCフィラメント | グループ: | 結合材料 |
|---|---|---|---|
| 色: | シルバー、グレー、ブルーなど | タイプ: | シングルスパイラルコイルバインディング |
| パッキング: | スピール | ピッチオプション: | 31 か 4 か1 |
| 選べるサイズ: | 1.3-2.8mmシングルスパイラルコイル | 材料: | PVC |
| 環境に優しい: | はい | 結束機: | 命令するべき歓迎 |
| 品質: | ハイレベル | 売る: | アジア、アフリカ、ヨーロッパ、アメリカ、中間の東、等。 |
Plastic PVC Wire Filament For Plastic Filament Binding Coil
PVC Wire Filament for Spiral Coil Binding - ±0.03mm High Precision
Item: PVC Filament
usage:binding looseleaf notebook,book
color:white black yellow blue green pink purple and so on
coil Size:1/4" 5/16'' 3/8'' 7/16'' 1/2'' 9/16'' 5/8'' 3/4'' 7/8'' 1'' 1-1/8'' 1-1/4'' 1-3/8'' 1-1/2'' 1-3/4'' 2''
Wire thickness:1.3mm,1.6mm,1.8mm,1.9mm,2 mm,2.3mm,2.5mm,2.6mm,2.8mm, 3mm
material:pvc, plastic
New weight/roll: 18-25 kg
OEM:yes
PVC Filament Specification
| Wire Thickness | Coil Size | Error Range(mm) | Net Weight/Roll(kg) |
|
| mm | Inch | Inch | +/-0.03mm | 18-25 |
| 1.3 | 0.051 | 1/4, 5/16 | ||
| 1.6 | 0.063 | 3/8,7/16 | ||
| 1.8 | 0.071 | 1/2,9/16, 5/8 | ||
| 1.9 | 0.075 | 3/4 | ||
| 2 | 0.079 | 7/8,1 | ||
| 2.3 | 0.0906 | 1-1/8 1-1/4 | ||
| 2.6 | 0.102 | 1-3/8 1-1/2 | ||
| 2.8 | 0.11 | 1-3/4 | ||
| 3 | 0.118 | 2 | ||
Welcome to order binding materials from the most reliable supplier in China!
Choose what you need from the below information.
If you want to know more, let us know.
| Coil Diameter | Wire Thickness | Recommended Max Book Thickness(mm) | Coil Pitch |
| 1/4"(6.4mm) | 1.3mm | 3.4 | 3:1,4:1&6mm,8mm |
| 5/16"(7.9mm) | 1.3mm | 4.9 | 3:1,4:1&6mm,8mm |
| 3/8"(9.5mm) | 1.6mm | 6.5 | 3:1,4:1&6mm,8mm |
| 7/16"(11.1mm) | 1.6mm | 8.1 | 3:1,4:1&6mm,8mm |
| 1/2"(12.7mm) | 1.8mm | 9.7 | 3:1,4:1&6mm,8mm |
| 9/16"(14.3mm) | 1.8mm | 11.3 | 3:1,4:1&6mm,8mm |
| 5/8"(15.9mm) | 1.9mm | 15.9 | 3:1,4:1&6mm,8mm |
| 3/4"(19.1mm) | 1.9mm | 19.1 | 3:1,4:1&6mm,8mm |
| 7/8"(22.2mm) | 2.2mm | 18.2 | 3:1,4:1&6mm,8mm |
| 1"(25.4mm) | 2.2mm | 20.4 | 3:1,4:1&6mm,8mm |
| 1-1/8"(28.6mm) | 2.3mm | 23.6 | 3:1,4:1&6mm,8mm |
| 1-1/4"(31.8mm) | 2.3mm | 26.8 | 3:1,4:1&6mm,8mm |
| 1-3/8"(34.9mm) | 2.5mm | 29.1 | 3:1,4:1&6mm,8mm |
| 1-1/2"(38.1mm) | 2.5mm | 32.1 | 3:1,4:1&6mm,8mm |
| 1-3/4"(44.5mm) | 2.5mm | 38 | 3:1,4:1&6mm,8mm |
| 2"(50.8mm) | 2.5mm | 42.8 | 3:1,4:1&6mm,8mm |
Goods: Plastic wire filament for bookbinding
Pitch option: 4:1 & 3:1
Color: Silver, gold, pink, black, white, blue, green, purple, rose-gold, etc.
Surface finishing: Smooth and perfect surface finishing
MOQ: 100 kgs
Quality: Durable and high-quality double loop wire binding goods
Usage: Raw materials for making plastic spiral coils binding
Size ranges: 1.3 to 2.8mm, you can tell us about your size requirement, then we can cooperate.
Shipping: We will arrange for you. If you have your own agent, we will deliver the goods to your agent based on your instructions.
Payment method: T/T, Western Union, Alibaba assurance payment, etc.

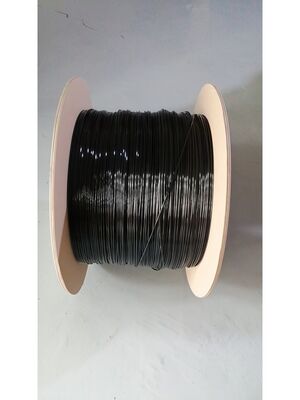

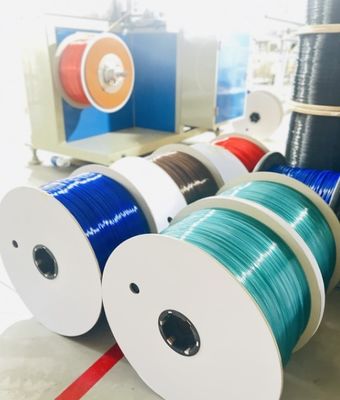

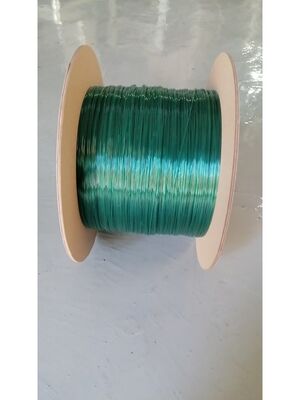

Images of the PVC single spiral coil raw material for your reference.
Goods we can supply are listed below.
Welcome to place the order! Look forward to establishing a long-term business relationship with you and your company!
A. After-printing book equipment:
Double-loop wire forming machine, double loop wire binding machine, semi-automatic punching machine, automatic punching machine, double loop wire binding &paper punching machine, single-loop forming spiral & binding machine, plastic spiral coil forming machine, plastic spiral coil binding machine, calendar hanger forming machine, book sewing machine, book folding machine. Mylar tab lamination machine, glue perfect binding machine, saddle stitching machine, etc.
B. Binding consumables:
Plastic spiral coil, double loop wire, nylon coated wire, Metal Spiral coil. PVC filament, PVC Binding Cover, Calendar Hanger Plastic Binding Comb, Plastic Binding Slider, Plastic Binding Press, Stitching Wire, etc.
